Dosing

Dosing, transfer and pumping cabinets

DOSINGBOX® range · PANEL® range · Custom-built plastic cabinets

Pumping and dosing are essential in industrial processes and water treatment. To keep the process running accurately, first-rate equipment is required. In industry and many other fields, transfer, pumping and dosing cabinets are needed to move and store toxic or corrosive chemicals. It is strongly recommended to protect the operators in charge by investing in suitable installations.

Armoire de dosage DOSINGBOX EELIX

A solution for every installation

01 DOSINGBOX® 1 door

DOSINGBOX® 1 door

For 1 or 2 pumps. 25-litre drip recovery.

See more →
02 DOSINGBOX® 2 doors

DOSINGBOX® 2 doors

For 2 or 3 pumps. 45-litre drip recovery.

See more →
03 DOSINGBOX® 3 doors

DOSINGBOX® 3 doors

Up to 5 or 6 pumps. 65-litre drip recovery.

See more →
04 PANEL®

PANEL®

Multifunction cabinets for tight spaces.

See more →

The DOSINGBOX® range for safer chemical transfer, pumping and dosing

Custom-built cabinets, piping and pumps assembled in our workshops.

Whatever your needs, EELIX offers suitable solutions with the DOSINGBOX® range. Choose the one-door model for one or two pumps, the two-door model for two or three pumps, or the three-door version for up to 6 pumps. Also discover PANEL® multifunction cabinets for tight spaces. A specialist team is available for turnkey installation.

DOSINGBOX®: innovation for safer chemical dosing

Designed, manufactured and marketed by EELIX, the integrated DOSINGBOX® dosing cabinet protects the operator, secures the installation and protects the environment from the hazards of pump dosing. DOSINGBOX® cabinets for 1 to 6 pumps are designed to accept all pump brands. Customers can supply their own pumps or order them from us. Pumps, valves, pulsation dampeners, calibration pots and other associated equipment form a functional assembled product that is quick to install.

  • Piping and equipment in PVC, PVDF, HDPE, PPH or stainless steel, assembled by our fitters on a customer-approved P&ID
  • Compatible with all pumps, yours or ours
  • Up to 100 standard assemblies plus all non-standard builds
  • Adapts to any layout, with or without a specification
  • Lockable doors to control access to the pumps
  • Reduces product mix-ups and pipe-connection errors
  • Limits splash hazards in the event of a leak or pressurised piping, and recovers drips
  • Delivered with hydraulic test certificates, commissioning manual and technical file
  • Rotomoulded HDPE cabinet, UV-resistant and 100 % corrosion-proof
  • 1, 2 or 3 doors with large transparent windows for easy pump access
  • PPE box built into the door + 1 set of PPE (suit, gloves, goggles)
  • 25 to 65 litre drip recovery with drain valve
  • HDPE brackets and plate for pumps and process equipment
  • Overflow G3/4″ with plug, outlet G 1/2″ with plug
  • 100 % corrosion-proof ventilation
  • Standard recommendations engraved in the mould
  • Fixing on tank, stand or wall — empty weight 30, 45 or 60 kg
  • Choice of door colours, logo engraved in the mould
  • Options: leak detector, pulsed-air heater, strainer, alarm kit, bottom drain, double-wall connection kit, pressure gauge…

For chemicals, surface treatment, food processing and water treatment — dosing ferric chloride, caustic soda, sodium hypochlorite, calcium nitrate, WAC, aluminium sulphate, citric acid, hydrochloric acid, sodium bisulphite, urea, etc.

DOSINGBOX® 1 door for 1 or 2 pumps

  • 1 lockable door, transparent window
  • PPE box in the door + 1 set of PPE
  • 25-litre drip recovery, PVC DN20 drain valve
  • HDPE plate and brackets for pumps and equipment
  • Overflow and leak-detector tappings
  • Fixing on tank, stand or wall — standard grey/yellow — empty weight 30 kg

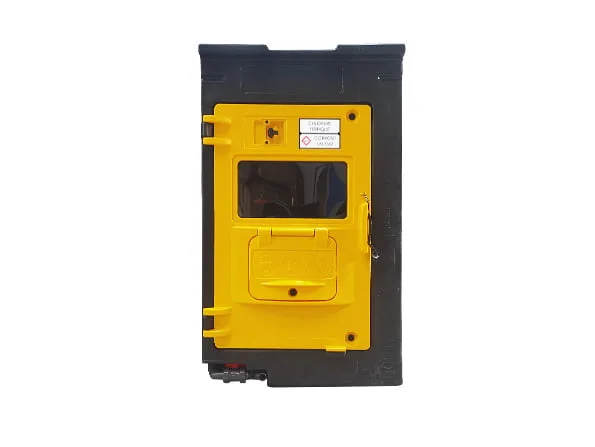

DOSINGBOX 1 door
DOSINGBOX® 1-door options
  • Strainer at the cabinet inlet
  • Diaphragm pressure gauge (pump discharge pressure)
  • Horizontal float leak detector, NO or NC, 250V/1A/50W/0VA
  • Pulsed-air heater 400–475 W / 230 VAC (frost risk)
  • 3-function ALARM kit (red flash, green flash, electronic siren)
  • Inflation kit for the pulsation dampener
  • Bottom drain with PVC DN20 valve
  • 2″ gas double-wall connection kit
  • Electrical junction box
  • Customer logo engraved in the mould, other colours, floor frame

DOSINGBOX® 2 doors for 2 or 3 pumps

  • 2 lockable doors, transparent window
  • PPE box in the door + 1 set of PPE
  • 45-litre drip recovery, PVC DN20 drain valve
  • Double fixing on tank, stand or wall — empty weight 45 kg

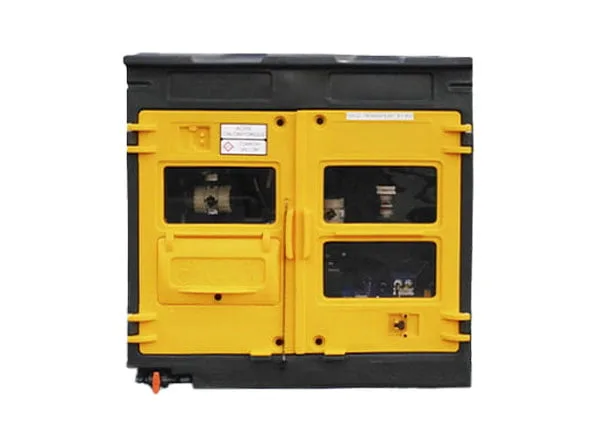

DOSINGBOX 2 doors
DOSINGBOX® 2-door options
  • Strainer, diaphragm gauge, leak detector, pulsed-air heater
  • 3-function ALARM kit, pulsation-dampener inflation kit
  • Bottom drain with PVC DN20 valve, 2″ double-wall connection kit
  • Electrical junction box, engraved logo, other colours, floor frame

DOSINGBOX® 3 doors for up to 5 or 6 pumps

  • 3 lockable doors, transparent window
  • PPE box in the door + 1 set of PPE
  • 65-litre drip recovery, PVC DN20 drain valve
  • Triple fixing on tank, stand or wall — empty weight 60 kg
DOSINGBOX datasheet · Download

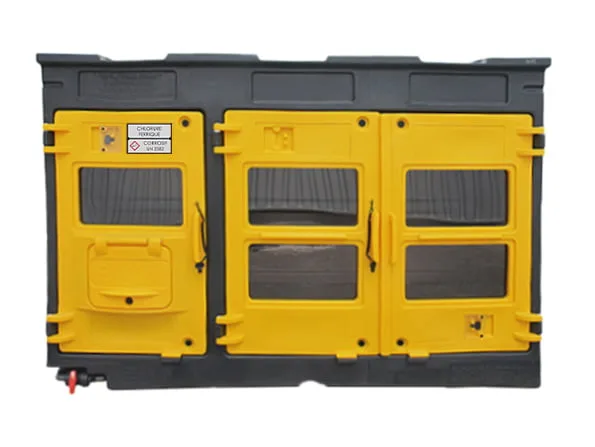

DOSINGBOX 3 doors
DOSINGBOX® 3-door options
  • Product label (product, hazard pictogram)
  • Strainer, diaphragm gauge, leak detector, pulsed-air heater
  • 3-function ALARM kit, pulsation-dampener inflation kit
  • Bottom drain with PVC DN20 valve, 2″ double-wall connection kit
  • Electrical junction box, engraved logo, other colours, floor frame

PANEL® multifunction cabinets for tight spaces

PANEL units are versatile cabinets for pumps, valve boxes, flow meters, water analysis, chlorination, dosing, chlorine dioxide, swimming pools, pH control and small-container storage. Options include cabinet/door colours, a moulded-in logo, an HDPE process plate, a pump bracket, a shelf, a PVC DN15 drain valve, an identification plate, a leak detector and an overflow.

PANEL datasheet · Download

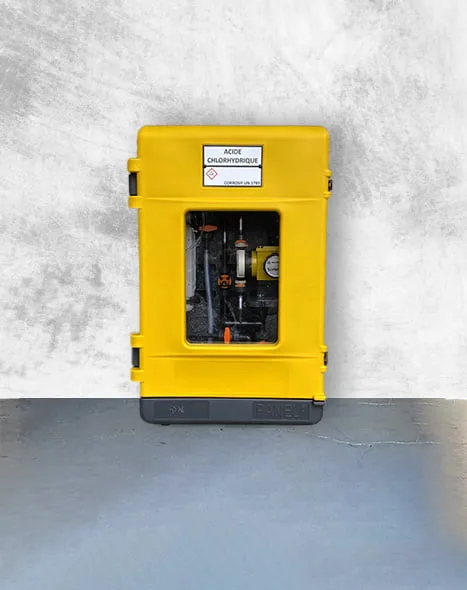

EELIX PANEL cabinet

Custom-built cabinets, piping and pumps assembled in our workshops

Custom-built plastic cabinets are made to your dimensions and requirements. They protect critical equipment while keeping it accessible: pumps, water analysis, chlorination, dosing, chlorine dioxide or small-container storage.

Mixing or dissolving liquid, viscous or gelled chemicals requires high precision to avoid accidents. Specialist technicians have developed high-precision pumping equipment and suitable materials that allow processes to be automated.

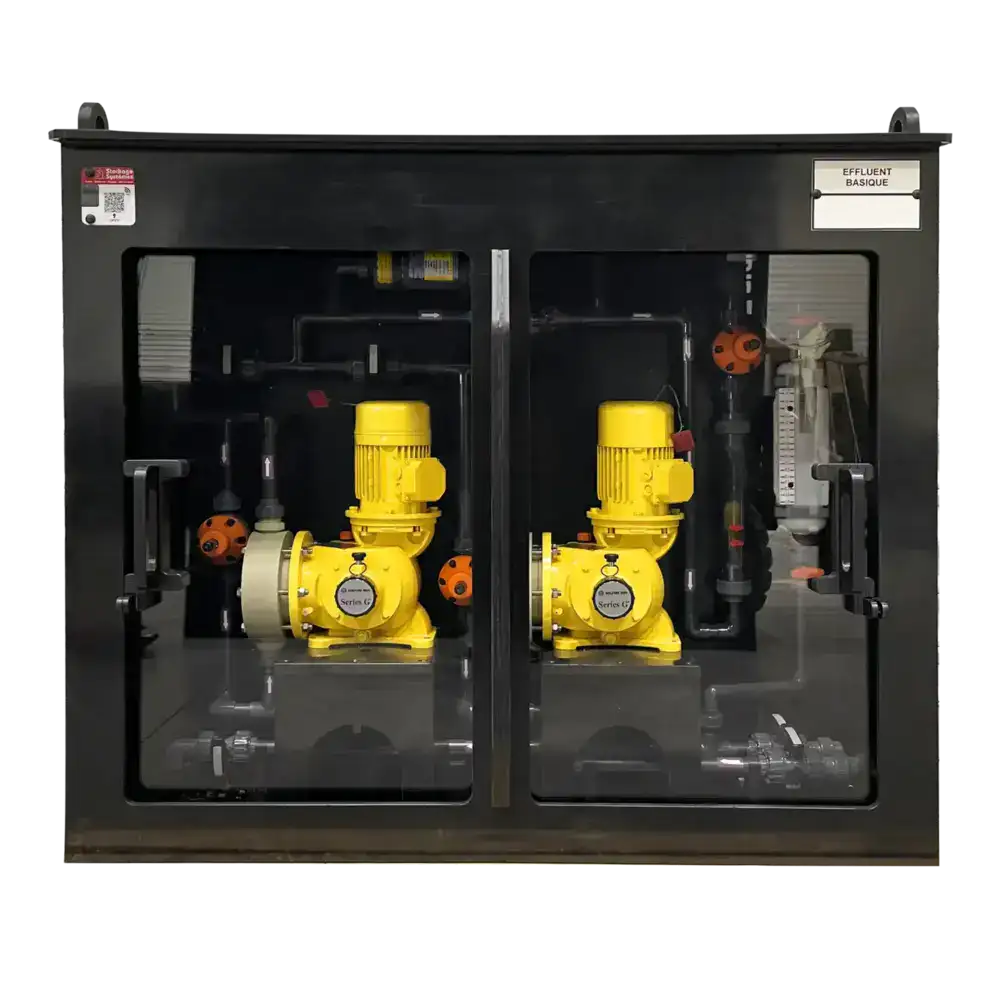

Custom-built EELIX cabinets

Accurate dosing to secure your transfers

Transfer, pumping and dosing solutions are essential so that the quantity transferred is precise. Too high a dose can cause major material or bodily damage, or an environmental disaster.

Process riskIf too much acid is poured into a tank or a neutralization basin, the temperature rise can damage materials or release toxic vapours.
Financial riskLosses from a dosing or pumping incident during a transfer cost far more than suitable cabinets fitted with the right sensors.
Operator riskIn storage areas, a single handling error causing a liquid or vapour leak can put operators’ health and safety at risk.
Dosing pumpsDedicated containers are fitted with dosing pumps. When operating conditions are respected, risk is kept under control.

The installer must take into account the flow-pressure pair, the products to transfer and dose, fluid temperature, compatibility with surrounding chemicals, and pump materials in contact with the liquids. Immediate surroundings can also expose operators: extreme temperatures, corrosive atmospheres, explosive environments. Regulation or interlock systems must be set according to each site.

EELIX can handle turnkey installation. HDPE cabinets last at least 25 years, are light, highly chemical-resistant and fully recyclable. Materials are always compatible with the liquids they may contain.
