Unloading means transferring chemicals or goods from the tanker into dedicated storage. Suitable equipment is essential to keep the product in the right condition.
Before you equip a site, it is strongly recommended to review the types of cabinets, posts and unloading enclosures available. EELIX offers models that can be tailored to your needs.
Upward unloading, vertical valve.
See more →
Downward unloading, horizontal valve.
See more →

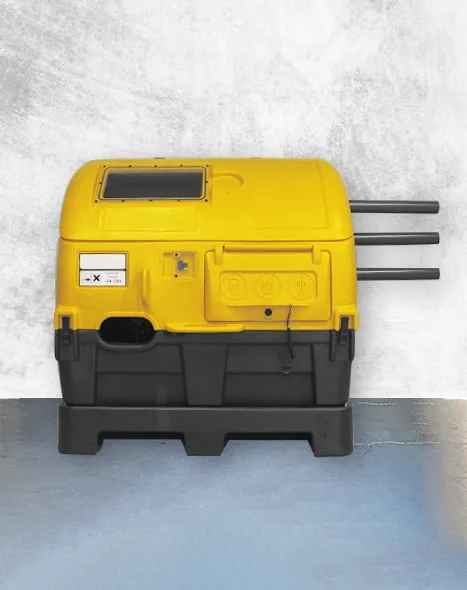

Fill up to 4 tanks from a single unloading point.
See more →
Unload with an integrated plug & play pump.
See more →EELIX designs, manufactures and supplies equipment that protects operators and secures installations. All SECURIBOX’Optima® and SECURIBOX’Classic® cabinets, posts and kiosks help you comply with ISO 14000 rules and standards.
You get a complete solution that informs the unloading sequence and protects against risk. With SECURIBOX’Optima® and SECURIBOX’Classic® you can unload chemicals safely without an intermediate pump. We also protect the environment by simplifying drip recovery and pipe draining. An effective leak-detection system can be fitted.
All products are delivered ready to use with a technical file, commissioning manual and hydraulic test certificates.
Signal, protect, recover, rinse. With SECURIBOX’Optima®, EELIX keeps innovating in the safety of chemical unloading carried out without an intermediate pump.

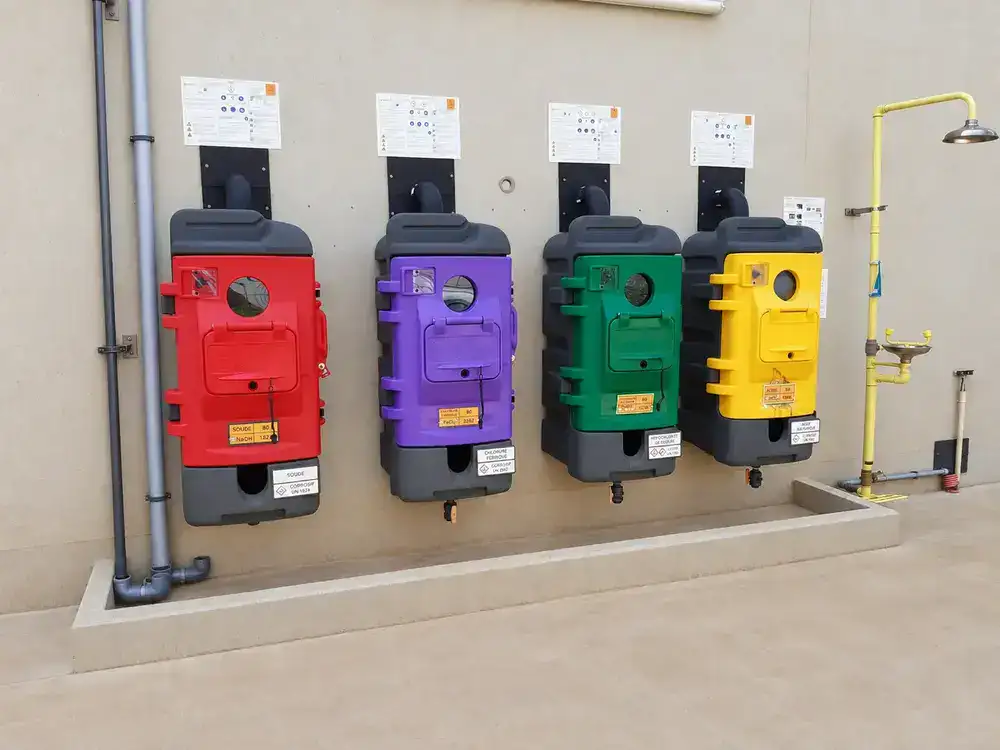

SECURIBOX’Optima® is designed for tanks with vertical pipework, with a highly secure sampling system, as a wall cabinet or free-standing kiosk. A wide choice of colours helps you identify stored products.
| Cabinet: wall or tank fixing — vertical valve | ||||
|---|---|---|---|---|
| Valve DN | Fire coupling | Material | Seals | Reference |
| DN50 - 2″ | 2″ | PVC-U | EPDM | SECO-C502-UE |
| DN50 - 2″ | 2″ | PVC-U | FKM (VITON) | SECO-C502-UV |
| DN50 - 2″ | 2″ | INOX 304L | EPDM | SECO-C502-SE |
| DN50 - 2″ | 2″ | INOX 304L | FKM (VITON) | SECO-C502-SV |
| DN80 - 3″ | 3″ | PVC-U | EPDM | SECO-C803-UE |
| DN80 - 3″ | 3″ | PVC-U | FKM (VITON) | SECO-C803-UV |
| DN80 - 3″ | 3″ | INOX 304L | EPDM | SECO-C803-SE |
| DN80 - 3″ | 3″ | INOX 304L | FKM (VITON) | SECO-C803-SV |
| DN100 - 4″ | 4″ | PVC-U | EPDM | SECO-C99-UE |
| DN100 - 4″ | 4″ | PVC-U | FKM (VITON) | SECO-C99-UV |
| DN100 - 4″ | 4″ | INOX 304L | EPDM | SECO-C99-SE |
| DN100 - 4″ | 4″ | INOX 304L | FKM (VITON) | SECO-C99-SV |
| Kiosk: floor fixing — vertical valve | ||||
|---|---|---|---|---|
| Valve DN | Fire coupling | Material | Seals | Reference |
| DN50 - 2″ | 2″ | PVC-U | EPDM | SECO-B502-UE |
| DN50 - 2″ | 2″ | PVC-U | FKM (VITON) | SECO-B502-UV |
| DN50 - 2″ | 2″ | INOX 304L | EPDM | SECO-B502-SE |
| DN50 - 2″ | 2″ | INOX 304L | FKM (VITON) | SECO-B502-SV |
| DN80 - 3″ | 3″ | PVC-U | EPDM | SECO-B803-UE |
| DN80 - 3″ | 3″ | PVC-U | FKM (VITON) | SECO-B803-UV |
| DN80 - 3″ | 3″ | INOX 304L | EPDM | SECO-B803-SE |
| DN80 - 3″ | 3″ | INOX 304L | FKM (VITON) | SECO-B803-SV |
| DN100 - 4″ | 4″ | PVC-U | EPDM | SECO-B99-UE |
| DN100 - 4″ | 4″ | PVC-U | FKM (VITON) | SECO-B99-UV |
| DN100 - 4″ | 4″ | INOX 304L | EPDM | SECO-B99-SE |
| DN100 - 4″ | 4″ | INOX 304L | FKM (VITON) | SECO-B99-SV |
Three models. The wall cabinet uses a horizontal valve and 30-litre drip recovery. The 300-litre kiosk is free-standing for pump, compressed-air or gravity unloading (DN50 or DN80). A carboy version recovers drips in a carboy (not supplied). Operating range −30 °C to +50 °C.
Note: the SECURIBOX Classic cabinet is not guaranteed rain-tight.
| Cabinet: wall or tank fixing — horizontal valve | ||||
|---|---|---|---|---|
| Valve DN | Fire coupling | Material | Seals | Reference |
| DN50 - 2″ | 2″ | PVC-U | EPDM | SECUC-502UEB |
| DN50 - 2″ | 2″ | PVC-U | FKM (VITON) | SECUC-502UVB |
| DN50 - 2″ | 2″ | INOX 304L | EPDM | SECUC-502SEB |
| DN50 - 2″ | 2″ | INOX 304L | FKM (VITON) | SECUC-502SVB |
| DN80 - 3″ | 3″ | PVC-U | EPDM | SECUC-803UEB |
| DN80 - 3″ | 3″ | PVC-U | FKM (VITON) | SECUC-803UVB |
| DN80 - 3″ | 3″ | INOX 304L | EPDM | SECUC-803SEB |
| DN80 - 3″ | 3″ | INOX 304L | FKM (VITON) | SECUC-803SVB |
| Kiosk with bund — floor fixing — horizontal valve | ||||
|---|---|---|---|---|
| Valve DN | Fire coupling | Material | Seals | Reference |
| DN50 - 2″ | 2″ | PVC-U | EPDM | SECUB-502UEC |
| DN50 - 2″ | 2″ | PVC-U | FKM (VITON) | SECUB-502UVC |
| DN50 - 2″ | 2″ | INOX 304L | EPDM | SECUB-502SEC |
| DN50 - 2″ | 2″ | INOX 304L | FKM (VITON) | SECUB-502SVC |
| DN80 - 3″ | 3″ | PVC-U | EPDM | SECUB-803UEC |
| DN80 - 3″ | 3″ | PVC-U | FKM (VITON) | SECUB-803UVC |
| DN80 - 3″ | 3″ | INOX 304L | EPDM | SECUB-803SEC |
| DN80 - 3″ | 3″ | INOX 304L | FKM (VITON) | SECUB-803SVC |
| Carboy kiosk — floor fixing — horizontal valve (carboy not supplied) | ||||
|---|---|---|---|---|
| Valve DN | Fire coupling | Material | Seals | Reference |
| DN50 - 2″ | 2″ | PVC-U | EPDM | SECUB-502UEB |
| DN50 - 2″ | 2″ | PVC-U | FKM (VITON) | SECUB-502UVB |
| DN50 - 2″ | 2″ | INOX 304L | EPDM | SECUB-502SEB |
| DN50 - 2″ | 2″ | INOX 304L | FKM (VITON) | SECUB-502SVB |
| DN80 - 3″ | 3″ | PVC-U | EPDM | SECUB-803UEB |
| DN80 - 3″ | 3″ | PVC-U | FKM (VITON) | SECUB-803UVB |
| DN80 - 3″ | 3″ | INOX 304L | EPDM | SECUB-803SEB |
| DN80 - 3″ | 3″ | INOX 304L | FKM (VITON) | SECUB-803SVB |
Ergonomic HDPE bund with 200-litre drip recovery, lockable hinged cover with inspection window, moulded pallet, PPE box + 1 set of PPE, full drain via manual valve. Up to 4 outlets, fire-hose coupling for the tanker hose. No pump: unloading by tanker pressurisation or an intermediate pump. Same robustness as the pumped version, with lower water-hammer risk.

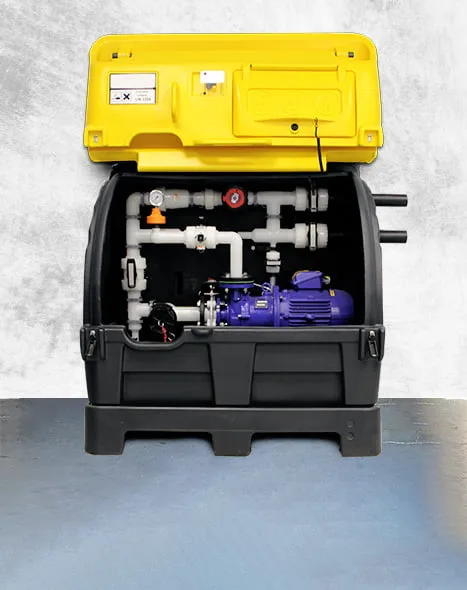

Recyclable HDPE cabinet with a customised diaphragm or centrifugal pump and piping, reducing toxic fumes and product leaks. Accepts pneumatic diaphragm pumps or magnetically driven centrifugal pumps, with flows up to 35 m³/h. Typical centrifugal sizes: 5, 30 or 50 m³/h.
Overall size 1,200 × 800 × 1,230 mm with the cover closed. Optional leak detector, frost heater, dry-run protection, alarm, castors for a mobile version.
VIGIFLUX datasheet · Download| Pump flow | Material | Seals | Inlet / outlet | Fire coupling | Lines | Reference |
|---|---|---|---|---|---|---|
| 5 to 15 m³ | PVC-U | EPDM | DN50 / DN50 | 2″ | 1 | VIUE50502-1 |
| 5 to 15 m³ | PVC-U | FKM | DN50 / DN50 | 2″ | 1 | VIUV50502-1 |
| 5 to 15 m³ | PVDF | EPDM | DN50 / DN50 | 2″ | 1 | VIFE50502-1 |
| 5 to 15 m³ | PVDF | FKM | DN50 / DN50 | 2″ | 1 | VIFV50502-1 |
| 5 to 15 m³ | INOX 304L | EPDM | DN50 / DN50 | 2″ | 1 | VISE50502-1 |
| 5 to 15 m³ | INOX 304L | FKM | DN50 / DN50 | 2″ | 1 | VISV50502-1 |
| 5 to 15 m³ | PVC-U | EPDM | DN50 / DN50 | 3″ | 1 | VIUE50503-1 |
| 15 to 25 m³ | PVC-U | EPDM | DN65 / DN50 | 3″ | 1 | VIUE65503-1 |
| 15 to 25 m³ | PVDF | EPDM | DN65 / DN50 | 3″ | 1 | VIFE65503-1 |
| 15 to 25 m³ | INOX 304L | EPDM | DN65 / DN50 | 3″ | 2 | VISE65503-2 |
| 5 to 15 m³ | PVC-U | EPDM | DN50 / DN50 | 2″ | 2 | VIUE50502-2 |
| 15 to 25 m³ | PVC-U | EPDM | DN65 / DN50 | 3″ | 2 | VIUE65503-2 |
Flow to be confirmed for each case. Other materials, seals and layouts are on the datasheet.
Unloading chemicals requires care to protect people, property and the environment. Applicable rules and ISO 14000 must be respected. Cabinets can be fitted with flow meters, level sensors, manual or automatic valves and pressure regulators.
Pump unloading avoids overflow or explosion risks from water hammer when tankers are pressurised. Cabinets are made from HDPE, which withstands corrosive substances. Fixed or mobile, palletisable and hooded models are available, with a drip-recovery bund and drain.
